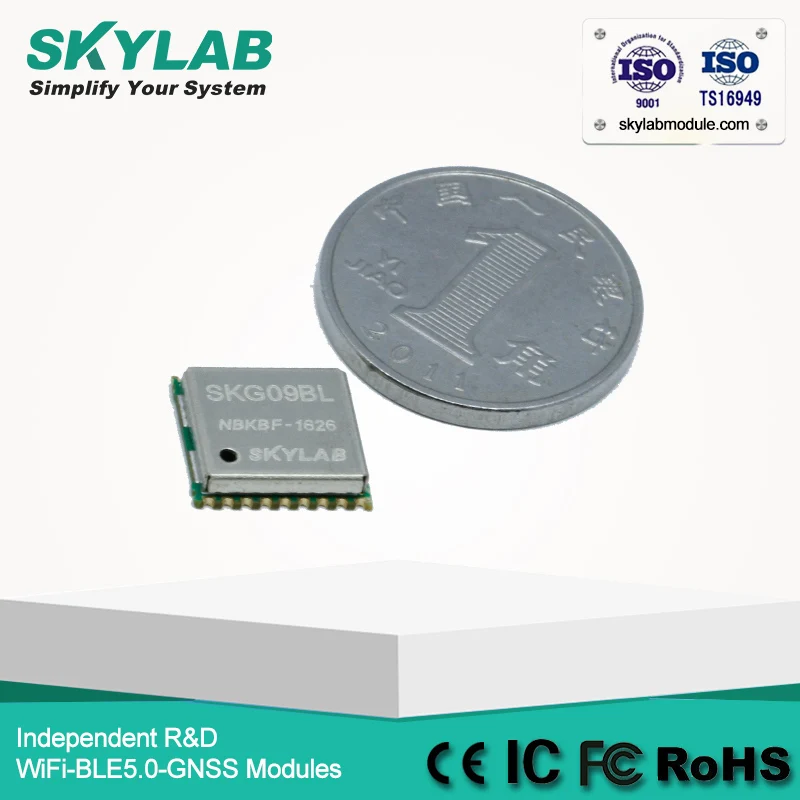

Name: Ultra High Sensitivity and Low Power GPS Receiver Module
Model No.: SKG09BL
The SKG09BL is a complete GPS engine module that features super sensitivity, ultra low power and small form factor. The GPS signal is applied to the antenna input of module, and a complete serial data message with position, velocity and time information is presented at the serial interface with NMEA protocol or custom protocol.
It is based on the high performance features of the MediaTek MT3337 single-chip architecture, Its –165dBm tracking sensitivity extends positioning coverage into place like urban canyons and dense foliage environment where the GPS was not possible before. The small form factor and low power consumption make the module easy to integrate into portable device like PNDs, mobile phones, cameras and vehicle navigation systems.
Ultra high sensitivity: -165dBm
Extremely fast TTFF at low signal level
Built-in 12 multi-tone active interference canceller
Ultra low power consumption
±10ns high accuracy time pulse (1PPS)
NMEA Output: GGA,GSA,GSV,RMC,VTG,GLL
Support QZSS
Advanced Features: Aiding EPO;EASY
RoHS compliant (Lead-free)
Dimension: 10.1 x 9.7 x 2.2mm
Specification: SKYLAB ROM GPS module SKG09BL MT3337 -165dBm QZSS Low Power GPS Receiver Module
GPS type
Receiver & Antenna
Brand Name
SKYLAB
Model Name
SKG09BL
Name
Ultra High Sensitivity and Low Power GPS Receiver Module
Chip
MT3337
Sensitivity
-165dBm
PPS
+/-10ns
NMEA Output
GGA,GSA,GSV,RMC,VTG,GLL
Satellite
QZSS
Advanced Features
Aiding EPO;EASY
Dimension
10.1 x 9.7 x 2.2mm
Input Voltage Vcc
3.0V to 4.2V
Acquisition Vcc
<25mA
6 Months Warranty
This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.
What voids the warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
